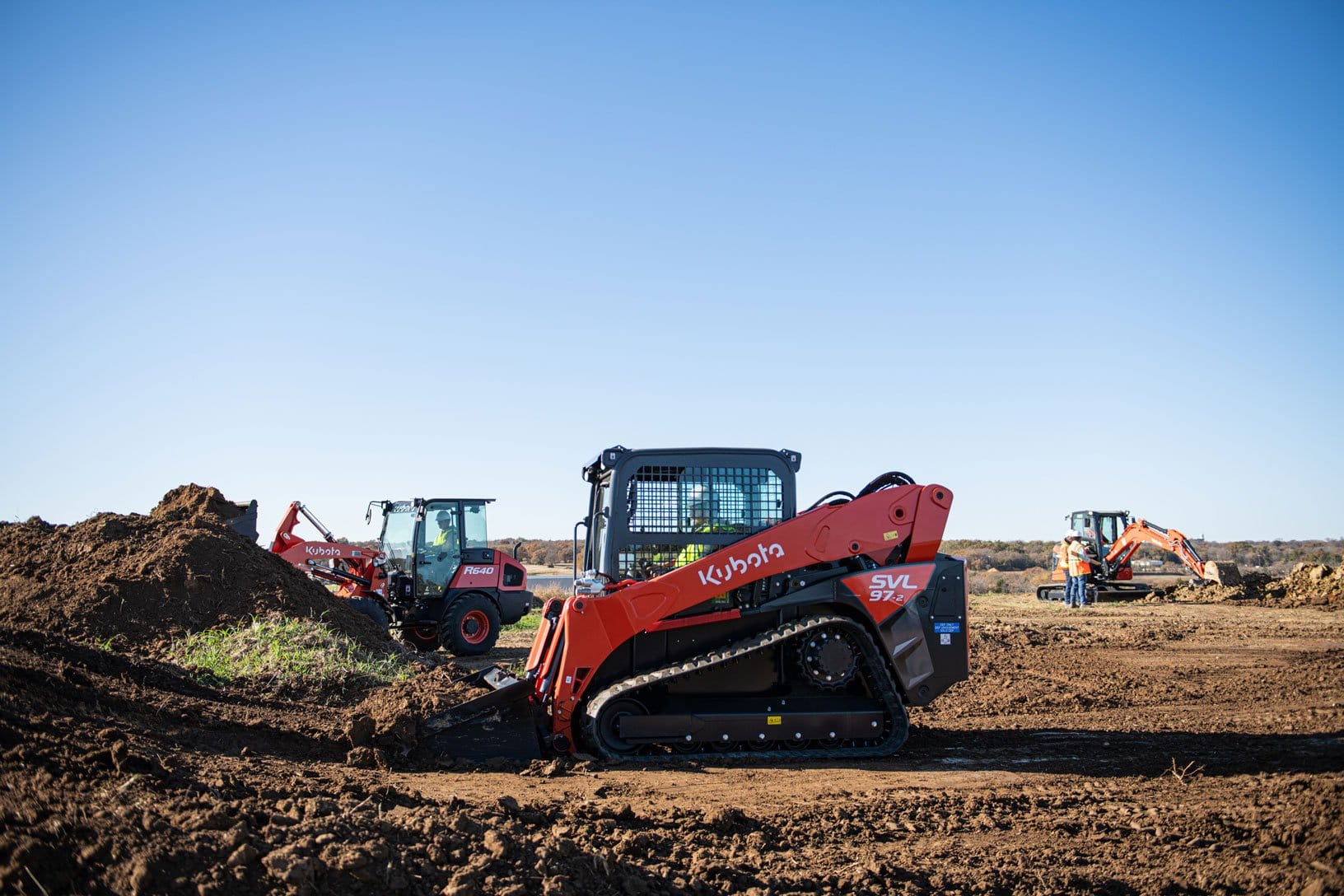

SVL97-2
Call for Pricing
Be the solution you’re searching for as you power through obstacles in your path and adapt to the conditions at hand in the Kubota SVL97-2. Rugged terrain? No problem. The SVL97-2 and its 96.4 horsepower are ready to move ground and make sure you’re working in comfort and in confidence. Factor in its dominant tipping load, breakout force and advanced hydraulic system and we think you and the SVL97-2 are going to get along nicely. A workhorse, a go-getter, a friend-- the Kubota SVL97-2.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
Save up to $4000 or 0% A.P.R. FOR UP TO 48 MONTHS with 0% Down ON SVL SERIES!
TRACK LOADERS
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!
Construction
description can go here...
Specifications
Auxiliary Hydraulic Pressure, Psi (bar)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Bucket Breakout Force, Lbf (kg)
Displacement Cu. In. (cc)
Ground Clearance, In (mm)
Ground Contact Pressure, Psi (k Pa)
Ground Pressure, (psi)
Height To Hinge Pin, In (mm)
Horsepower (gross)
Lift Arm Breakout Force, Lbf (kg)
Lift Arm Path
Operating Weight, Lbs (kg)
Operator Station
Overall Height, In (mm)
Overall Length, In (mm)
Overall Width, In (mm)
Rated Operating Capacity ( R O C), Lbs (kg)
Tipping Load, Lbs (kg)
Track Ground Contact Length, In. (mm)
Track Rollers (per Side)
Track Width (standard/wide), In. (mm)
Traction Force, Lbf (kgf)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Auxiliary Hydraulic Pressure, Psi (bar)
3553 (249.8)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
23.1 (87.6) / 40.0 (152)
Bucket Breakout Force, Lbf (kg)
7623 (3458)
Displacement Cu. In. (cc)
230.0 (3769)
Ground Clearance, In (mm)
11.5 (293)
Ground Contact Pressure, Psi (k Pa)
Standard: 4.4 (30.3) / 4.5 (31.0) Wide: N/A
Ground Pressure, (psi)
Standard: 4.4 / 4.5 Wide: N/A
Height To Hinge Pin, In (mm)
128.5 (3263.9)
Horsepower (gross)
96.4
Lift Arm Breakout Force, Lbf (kg)
5530 (2509)
Lift Arm Path
Vertical
Operating Weight, Lbs (kg)
11277 (5115) / 11552 (5240)
Operator Station
Open cab / closed cab
Overall Height, In (mm)
83.3 (2116)
Overall Length, In (mm)
154.6 (3929)
Overall Width, In (mm)
Vehicle Width: 77.2 (1962) Width With Bucket: 80 (2032)
Rated Operating Capacity ( R O C), Lbs (kg)
3200 (1451)
Tipping Load, Lbs (kg)
9143 (4147)
Track Ground Contact Length, In. (mm)
65.6 (1667)
Track Rollers (per Side)
5
Track Width (standard/wide), In. (mm)
17.7 (450) / N/A
Traction Force, Lbf (kgf)
12178 (5524)
Traveling Speed: High, Mph (kph)
7.3 (11.7)
Traveling Speed: Low, Mph (kph)
5 (8.0)
